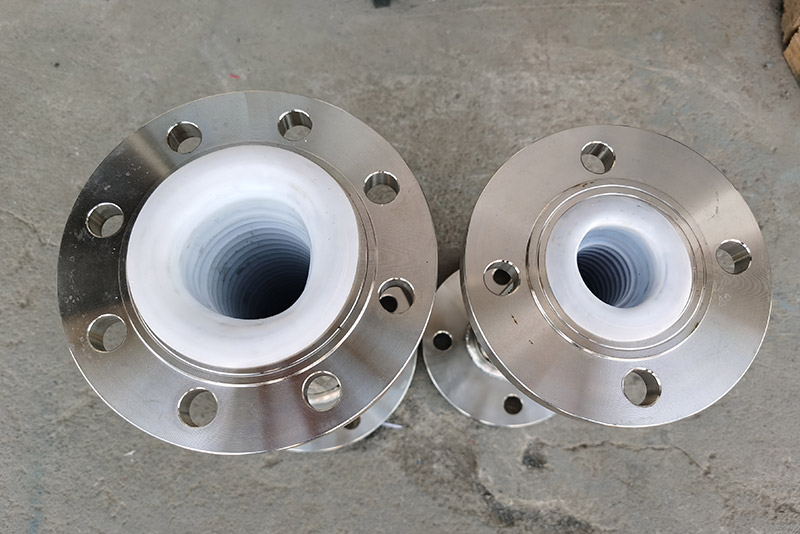

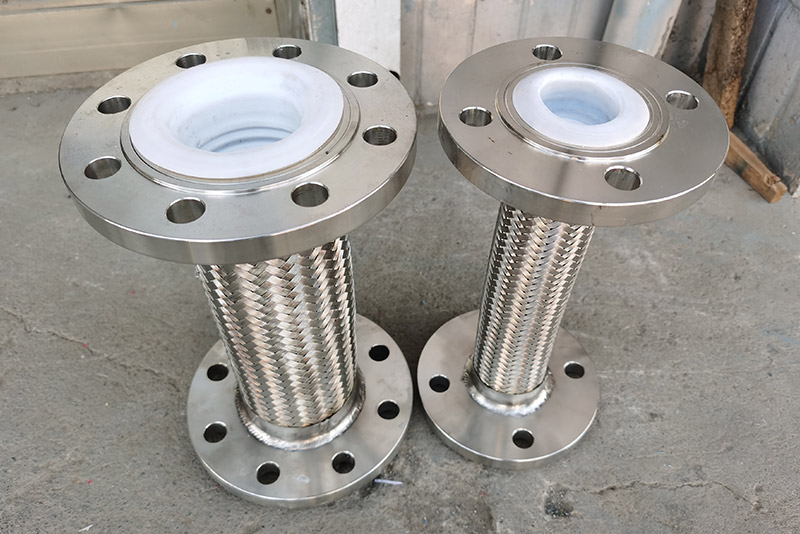

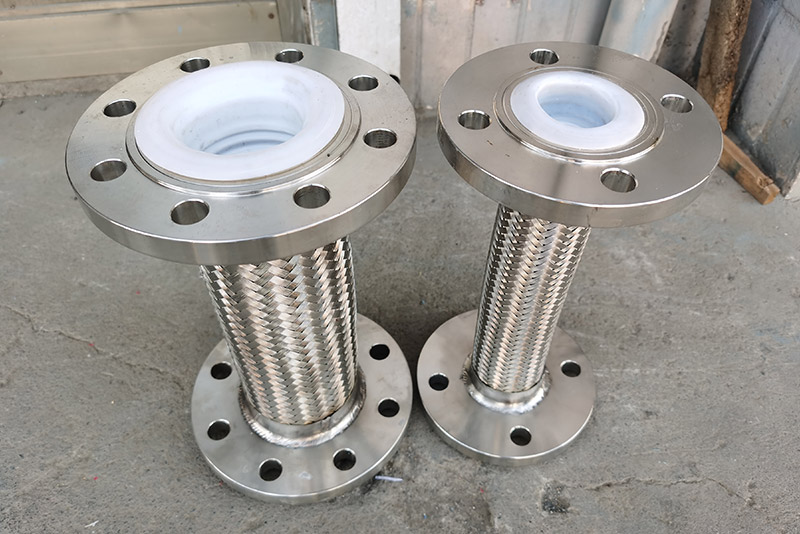

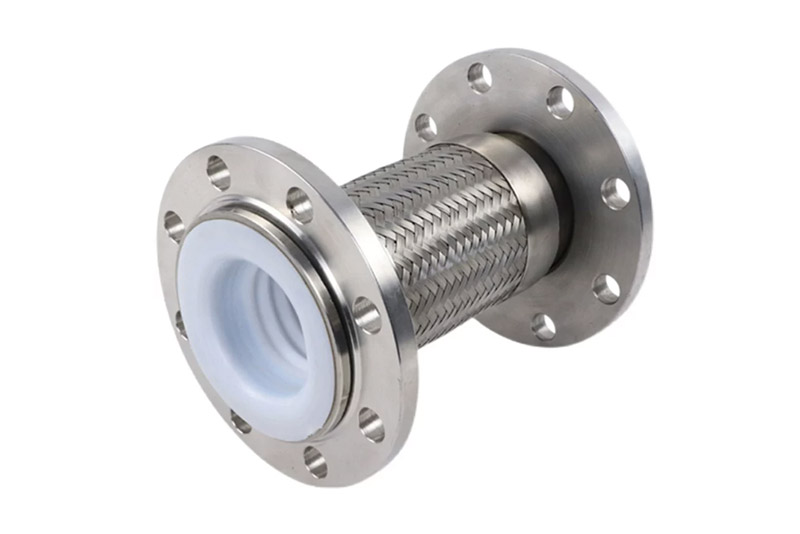

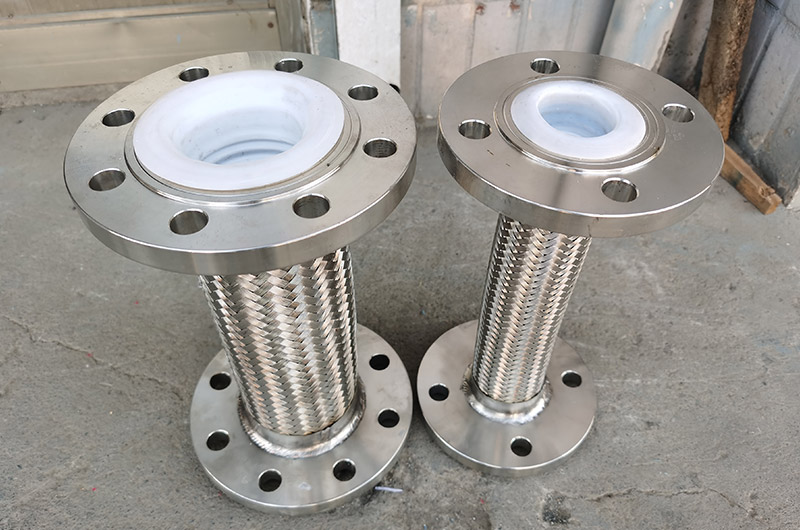

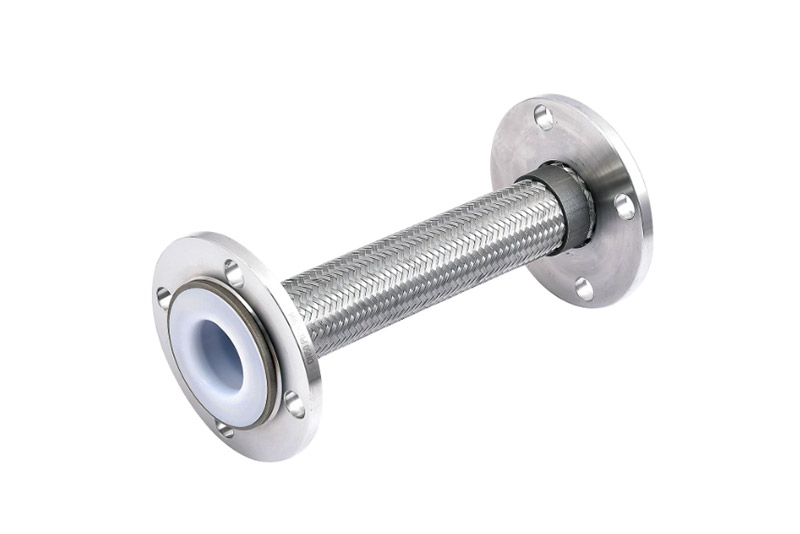

PTFE flanged metal hoses are composite flexible pipe fittings with an inner layer of polytetrafluoroethylene (PTFE) and an outer layer of stainless steel corrugated/braided mesh. They combine the strong corrosion resistance of PTFE with the pressure resistance, flexibility, and vibration resistance of metal. They are mainly used in highly corrosive, high-purity, and high-temperature working conditions to transport strong acids, strong alkalis, organic solvents, and high-purity media, while absorbing pipeline displacement, vibration, and installation deviations.
Chemical Industry: Chlor-alkali, sulfuric acid/hydrochloric acid/hydrofluoric acid, dyes, intermediates, and highly corrosive media transportation.
Strong Corrosion Resistance: Replaces ordinary metal/rubber, extending service life by 3–5 times.
Wide Temperature and Pressure Range: -196℃～260℃, vacuum up to 2.5MPa, widely adaptable to various operating conditions.
Flexible Vibration Damping: Multi-directional compensation, vibration absorption and noise reduction, protecting pumps and valves.
Safe Sealing: Crimping process, no leakage under high pressure, suitable for harsh operating conditions.

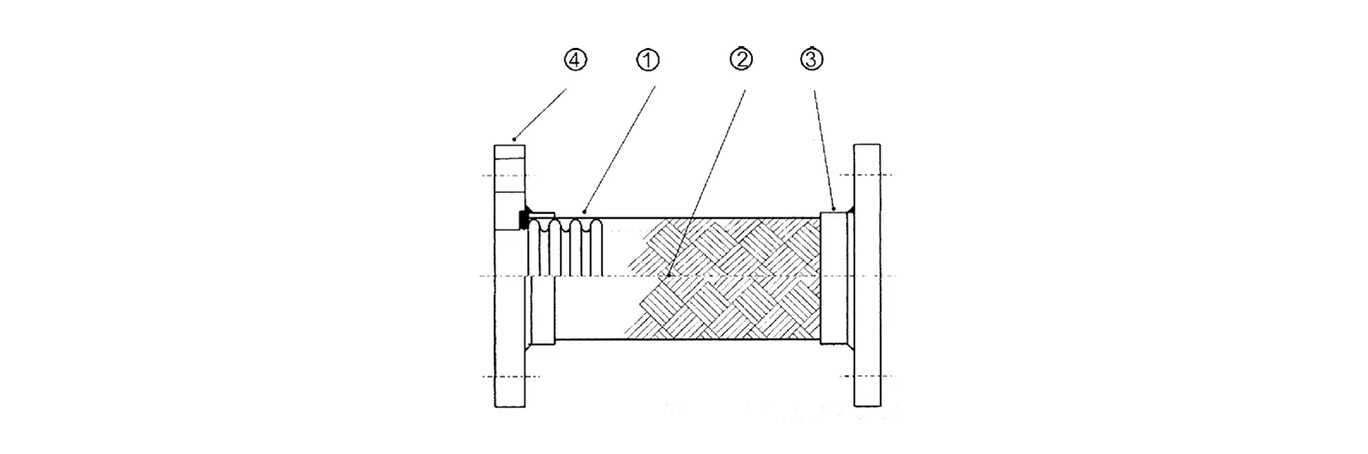

| MATERIAL LIST | ||
| ITEM | PARTS | MATERIAL |
| 1 | BELLOWS | SUS 304 / SUS 316 |
| 2 | WIRE BRAIDS | SUS 304 |
| 3 | SEAL RING | SUS 304 / SUS 316 |
| 4 | FLANGED | SS 400 / SUS 304 / 316 A105 |
| Product specifications | |||||||
| DN | Internal diameter (mm) |
Outer diameter (mm) |
minimum bending radius | maximum working pressure Mpa |
|||
| corrugated pipe | With a net cover | static state | dynamic | A net cover | Two layer net cover | ||
| 8 | 8.8 | 13.2 | 14.4 | 50 | 110 | 15 | 20 |
| 10 | 11.7 | 16.5 | 17.7 | 65 | 145 | 15 | 20 |
| 15 | 13.5 | 19.5 | 21.1 | 80 | 180 | 15 | 20 |
| 20 | 20.0 | 27 | 28.6 | 120 | 270 | 10 | 15 |
| 25 | 27.0 | 34.5 | 36.1 | 160 | 360 | 6.3 | 10 |
| 32 | 32.0 | 40 | 41.6 | 175 | 400 | 4 | 6.3 |
| 40 | 39.6 | 52 | 53.6 | 225 | 510 | 4 | 6.3 |
| 50 | 49.7 | 62 | 63.6 | 280 | 640 | 3 | 5.0 |
| 65 | 61.2 | 80.2 | 81.8 | 410 | 915 | 3 | 5.0 |
| 80 | 79.0 | 96.3 | 97.9 | 486 | 1030 | 3 | 5.0 |
| 100 | 101.2 | 119.6 | 121.2 | 610 | 1340 | 2.5 | 4.0 |
| 125 | 124.1 | 145.3 | 146.9 | 700 | 1540 | 2.5 | 4.0 |
| 150 | 149.4 | 180.8 | 182.4 | 810 | 1780 | 2.5 | 4.0 |
| 200 | 176.0 | 240 | 243.2 | 1000 | 2000 | 2.5 | 4.0 |
| 250 | 248.0 | 290 | 294 | 1250 | 2500 | 2.5 | 4.0 |
| 300 | 298.0 | 350 | 354 | 1500 | 3000 | 1.6 | 2.5 |
| 350 | 347.0 | 400 | 404.8 | 1750 | 3500 | 1.6 | 2.5 |
| 400 | 397.6 | 460 | 464.8 | 2000 | 4000 | 1.6 | 2.5 |
| Datas above are only for reference, please contact us for exact data! | |||||||
