High internal density, able to withstand high pressure, and excellent elastic deformation. Reduces vibration, lowers noise, has good extensibility, and is easy to use.
High internal density, able to withstand high pressure, and excellent elastic deformation. Reduces vibration, lowers noise, has good extensibility, and is easy to use.

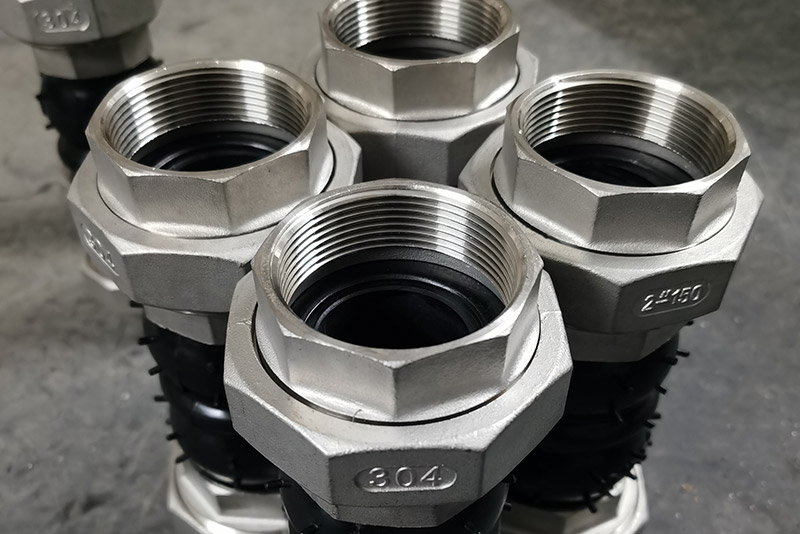

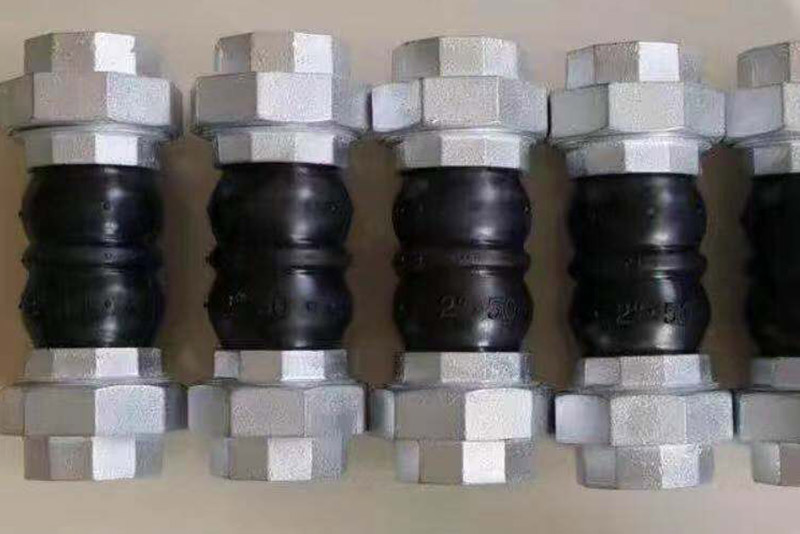

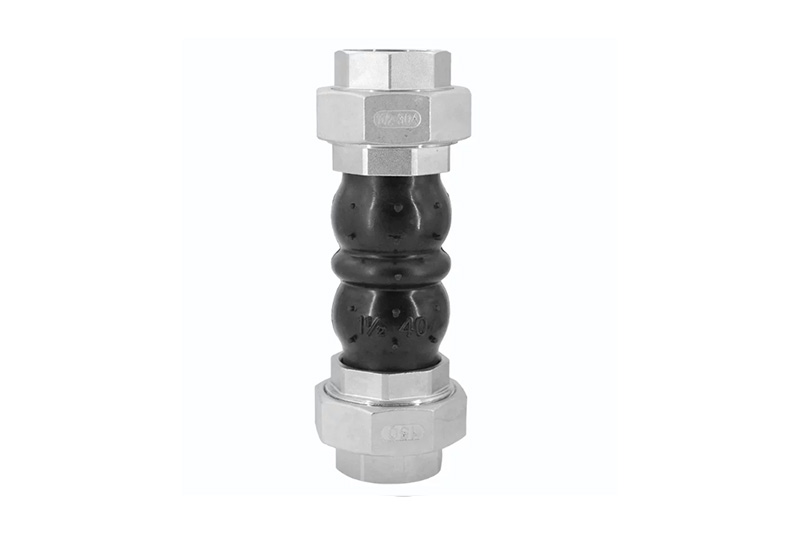

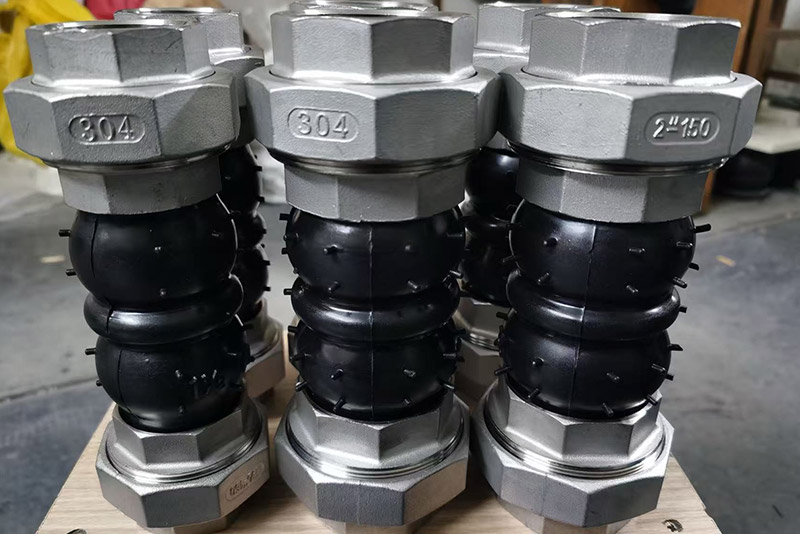

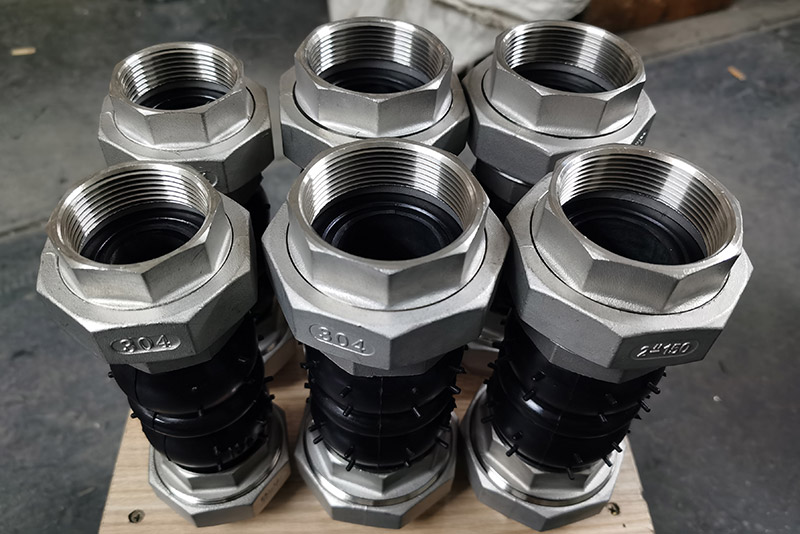

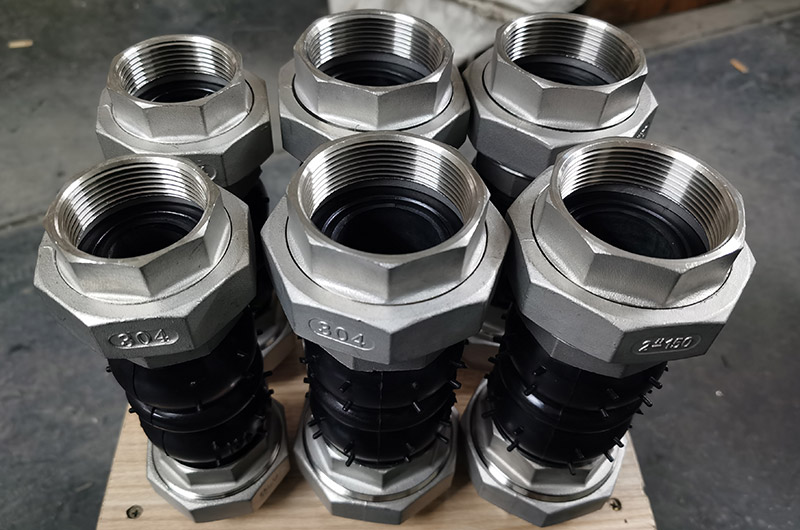

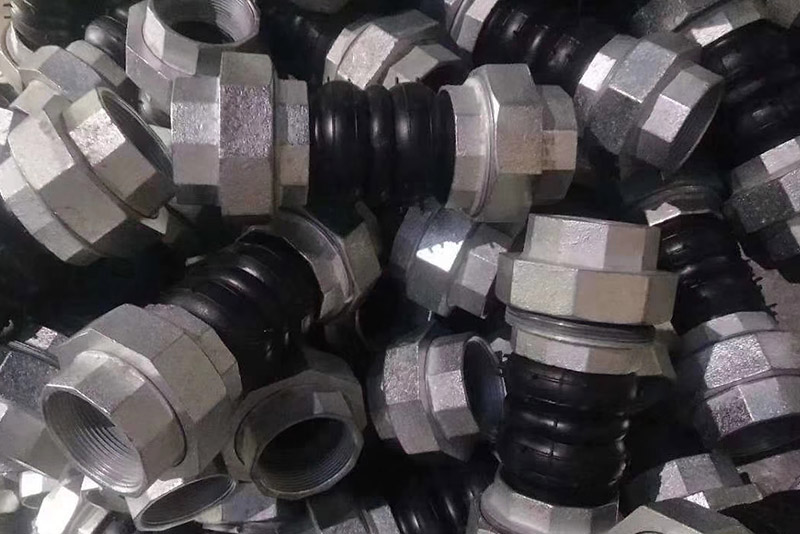

Threaded rubber expansion joints are highly elastic, airtight, media-resistant, and weather-resistant pipe joints. They utilize the elasticity, high airtightness, media resistance, weather resistance, and radiation resistance of rubber, and are made by compounding high-strength, thermally and thermally stable polyester cord fabric with rubber, followed by high-pressure, high-temperature mold vulcanization.
Threaded rubber expansion joints have excellent comprehensive performance and are mainly used for lifting and transporting raw water and sewage, feedwater and cooling circulating water in thermal power plants, condensate in the metallurgical industry, pipeline transportation of chemical substances in the chemical industry, cooling and dilution in the petrochemical industry, and flexible connections between long and short-distance pipelines in other industries.
Because rubber has high wear resistance, it is also suitable for conveying granular, powdery, and gaseous materials in all industries.
Seawater, fresh water, hot and cold water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, refined oil, air, gas, steam, and particulate matter.

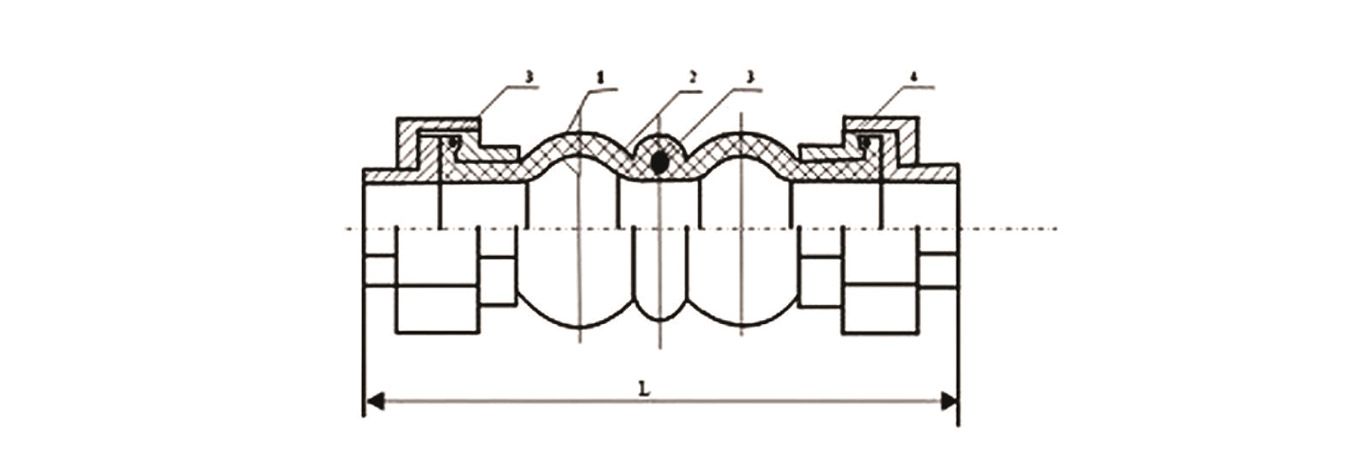

| serial number | parts | quantity | Material |
| 1 | main body | 1 | Natural rubber (NR), chloroprene rubber (CR), butyl rubber (IIR), nitrile rubber (NBR), fluororubber (FKM), ethylene propylene diene monomer (EPDM) rubber |
| 2 | Inner and outer linings | 1 set | Natural rubber (NR), chloroprene rubber (CR), butyl rubber (IIR), nitrile rubber (NBR), fluororubber (FKM), ethylene propylene diene monomer (EPDM) rubber |
| 3 | Main skeleton | 1 set | Nylon curtain |
| 4 | booster ring | 1 | Multi-strand copper-plated steel wire |
| 5 | Threaded union | 2 | Q235 stainless steel |
| Item\Model | KWT-1 | KWT-2 | Remark |
| Working pressure MPa | 1.0(10) | 1.6(16) | For media such as oil, acids, and alkalis, or those with special operating temperature requirements, we can also customize products by sending us a letter or drawing. Please specify this when ordering. |
| Explosion pressure (MPa) | 2.0(20) | 3.0(30) | |
| Vacuum degree Kpa | 53.3(400) | 86.7（650） | |
| Applicable temperature℃ | -15℃ to +115℃; special models can reach -30℃ to +250℃. | ||
| Applicable media | Air, compressed air, water, seawater, hot water, oil, acids and alkalis | ||
| Nominal diameter DN | Length L | Axial displacement mm | Lateral displacement mm | deflection angle(α₁+α₂)° | |||
| mm | inch | Type A | Type B | elongation | compression | mm | ° |
| 15 | 0.5 | 180 | 187 | 5 | 10 | 20 | 45 |
| 20 | 0.75 | 180 | 195 | 5 | 10 | 20 | 45 |
| 25 | 1 | 180 | 200 | 5 | 10 | 20 | 45 |
| 32 | 1.25 | 185 | 205 | 5 | 10 | 20 | 45 |
| 40 | 1.5 | 190 | 210 | 5 | 10 | 20 | 45 |
| 50 | 2 | 203 | 220 | 5 | 10 | 20 | 45 |
| 65 | 2.5 | 240 | 240 | 5 | 10 | 20 | 45 |
| 80 | 3 | 270 | 285 | 5 | 10 | 20 | 45 |
